160W RIGID SOLAR PANEL

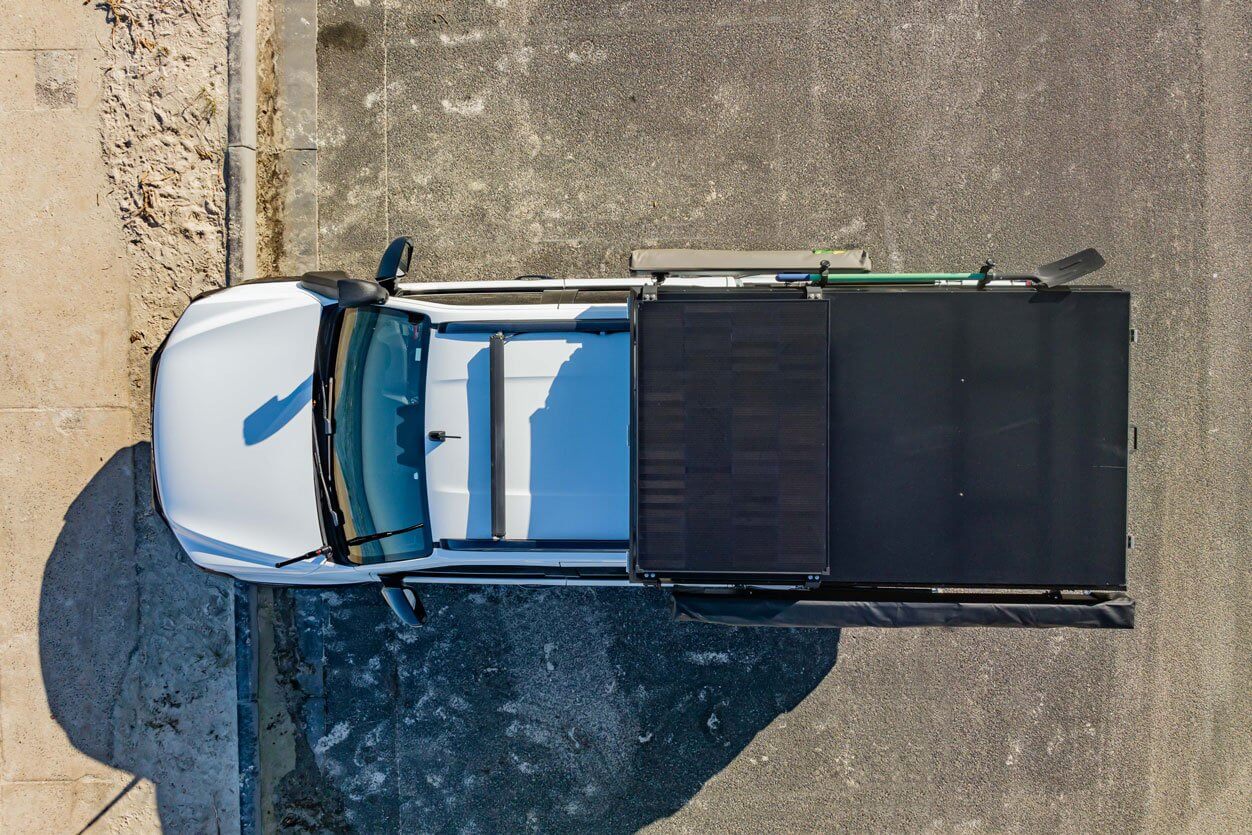

Discover the ultimate eco-friendly power solution for your next camping adventure with Ironman 4×4 Solar Panels. Our efficient panels are built to last, ensuring optimal output and power supply while offering exceptional protection against heat damage. The Rigid Solar Panels are aluminium framed and designed to mount to the roof of your vehicle*. *Mounting Brackets are sold separately.

SHINGLE TECHNOLOGY

The cells are cut into 5 equal parts and connected by sub-strings allowing the cell to bypass shaded areas and maximise power output. Compared to conventional panels, the effect of bad cells is significantly reduced, eliminating the risk of hot spots and permanent damage.

BUILT TO LAST

The premium 7-layer cell construction withstands Australian conditions, offering heat resistance, durability, and increased power supply. Monocrystalline cells are 15-20% more efficient than polycrystalline cells, producing more power in less space. The ETFE layer protects panels from high temperatures, corrosion, and stains.

SUITABLE PRODUCTS

• 20A MPPT Regulator
• M4 Connector Wiring Kit
• Twin Connectors with M &F MC4 Plugs
• 50A Anderson to M &F MC4 Plugs
• Mounting Brackets to suit Rigid Solar Panels

Specification
DIMENSIONS	1185 x 670 x 30mm
PRODUCT WEIGHT	8.55kg
PANEL
FRAME / BACKING MATERIAL	Aluminium with Nylon Protective corners – Black
NO. OF CELLS PER PANEL	102
CELL COATING	Tempered Glass
CONSTRUCTION	Cells assembled in Shingle format
UV STABILISED (NON FADE)	Anti-UV Coating on Face
RATED MAXIMUM POWER	160W
VOLATAGE @PMAX (VPM)	19.04
CURRENT @PMAX (VPM)	8.40A
OPEN-CIRCUIT VOLTAGE (VOC)	23.15V
SHORT-CIRCUIT VOLTAGE (ISC)	8.78A
MAXIMUM SYSTEM VOLTAGE	600 VDC
MAXIMUM VUSE RATING	20A
OPERATING TEMPERATURE	-40°C to + 85°C
EFFICIENCY RATE	20.10%
SOLAR
TYPE	A Grade Monocrystalline Cell – Shingle Assembly
MATERIAL	Silicon
WATT PER CEL	1.54W
VOLTAGE / AMPERAGE PER CELL	0.56V / 2.75A
CONNECTIONS
BOX	Junction Box With Internal Diode
CONNECTIONS	MC4
IP RATING	IP68
DIODE	1 x Bypass
WARRANTY	5 years
